Thermal Lamination LP13 SLm
*Instant Curing System for different applications
Description

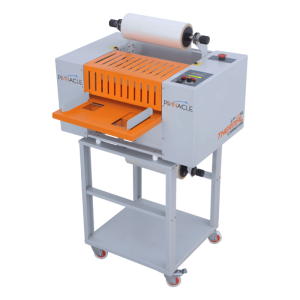

Thermal Lamination LP13 SLm
This Booklet making machine with Auto Feeding and Manual Cut After
lamination is a combination of Slitting & Double Side Lamination to create a
Flat Open Photo Book for Double Sided Prints. You can use it either for Inline
Slitting with Double Side Lamination or only for Lamination purpose.
•LP 13 SLM a Booklet making Machine is Manual Feeding and Manual Cutting
after Lamination.
Key
Features
- User friendly LCD Control Display to operate various functions.
- High Accuracy Sensor has been provided to maintain Accurate Temperature.
- Easily controlled speed for varied papers and lamination films, speed up to 5 Mtr /min.
- 1”(Inch) core for small lamination film roll & 3”(Inch) core for jumbo Film roll.
- Standby mode to save the power consumption on idle condition of the machine.
- Dust cleaning system before slitting process.
Specification
Maximum paper Size
330 mm x 482 mm
Minimum paper Size
200mm x 200 mm
Thickness of paper
170 to 300 GSM
Machine dimension
3861(L) x 698W)x 1168(H) (in mm)
speed
2000 Sheets / hour (A3)
Power Supply
220V AC 50HZ
Maximum power consumption
1500W
Weight
320 Kg
Air Compressor
Air connection in required (to run the thin paper)
