Thermal Lamination LP13 FL
*Instant Curing System for different applications
Description

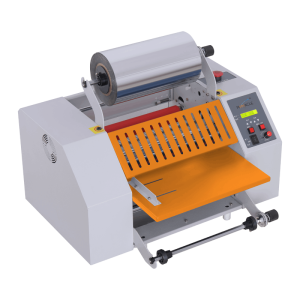

Thermal Lamination LP13 FL
Thermal LP-13 FL is a compact model that has two key functions of Prints Foiling the embossed UV area & Black tonner and Lamination for Single side or Double side option.
Ri-download-2-fill Icon-video
Key Features
  • User friendly Keypad Display to operate various functions
  • Sensor has been provided to maintain Accurate Temperature
  • Easily controlled speed for varied papers and lamination films, speed is up to 5mtrs/min.
  • Accurate Combination of Foiling and Lamination processes.
  • Compact design.
Specification
Maximum paper Size
510 mm
Thickness of synthetic paper
0.125 mm – 0.200 mm
Thickness of paper
150 GSM - 400 GSM
Machine dimension
3861(L) x 698W)x 1168(H) (in mm)
speed
2000 Sheets / hour (A3)
Power Supply
3 PH+N
Maximum power consumption
6000W
Weight
320 Kg
Air Compressor
Air connection in required (to run the thin paper)
