Automates the process, saves Manpower and Time
Adroit Z Classic
*All-in-one photobook binding and lamination system for double sided prints
Description

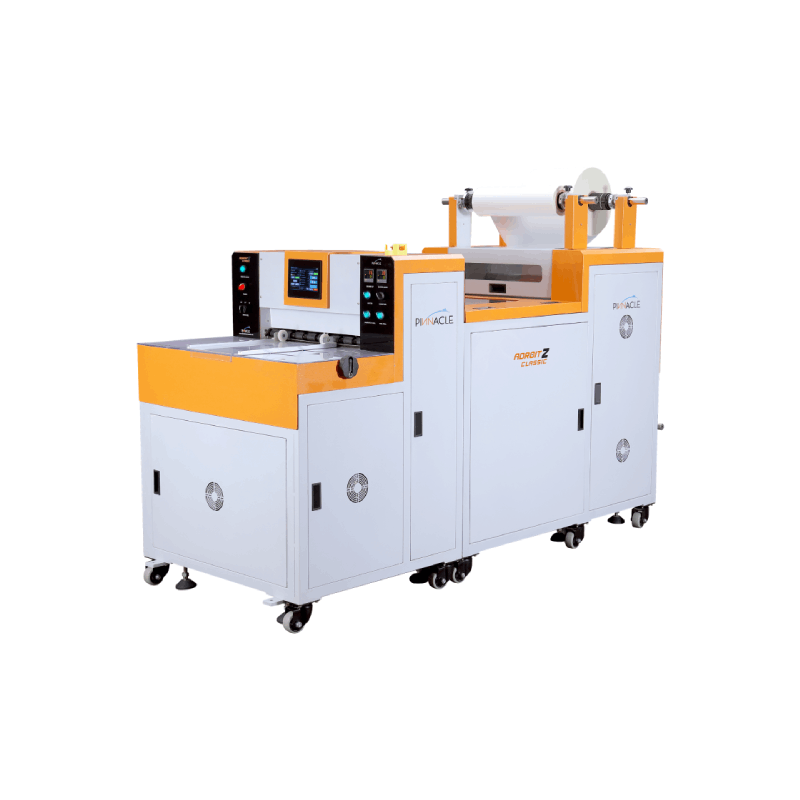

Adroit Z Classic
Adroit Z Classic, helps programming Photo books, with varied specifications. The paper is manually placed at one end of the machine and the processed laminated prints come out from the other end. The entire process is carried out without any human intervention, Once the programming is pre-defined for each book, Adroit Z Classic carries on the entire process right from WINDOW CUTTING, HOLE PUNCHING IN V-SHAPE, DUST CLEANING, THERMAL LAMINATION. The Laminated sheets with Utter precision in entire operation feeding of the Prints and Cutting after Lamination is manual by hand. Thus, in no time, the entire stack of Photo Books is ready to be Stapled and Binded to take a V- Shape LayFlat open Photobook.
Ri-download-2-fill Icon-video
Key Features
  • 7” (inch) Touch Control Panel Display : Every aspects can be preprogrammed with 7”(inch) display with windows & PLC.
  • Temperature Controller : Individual Temperature controller for both the Lamination Roller
  • Manual Feeding. Specially Design feeding Roller which will on/off between two sheet so feeding can be accurate and at the same time we can maintain perfect gap between two sheets
  • Cutting after Lamination : Manual (By Hand)
Specification
Maximum paper Size
482mm x 482mm
Minimum Paper Size
320mm x 482mm
Thickness of synthetic paper
0.125mm – 0.175mm
Air compressor
Pneumatic Connection Required
Thickness of paper
150 GSM - 300 GSM
Speed
700 Sheets / Hour
Power Supply
220V 50HZ
Maximum power consumption
6000W
Machine dimension
3378(L) x 1092(W)x 1651(H) (mm)
Weight
700 Kg
