Automates the process, saves Manpower and Time

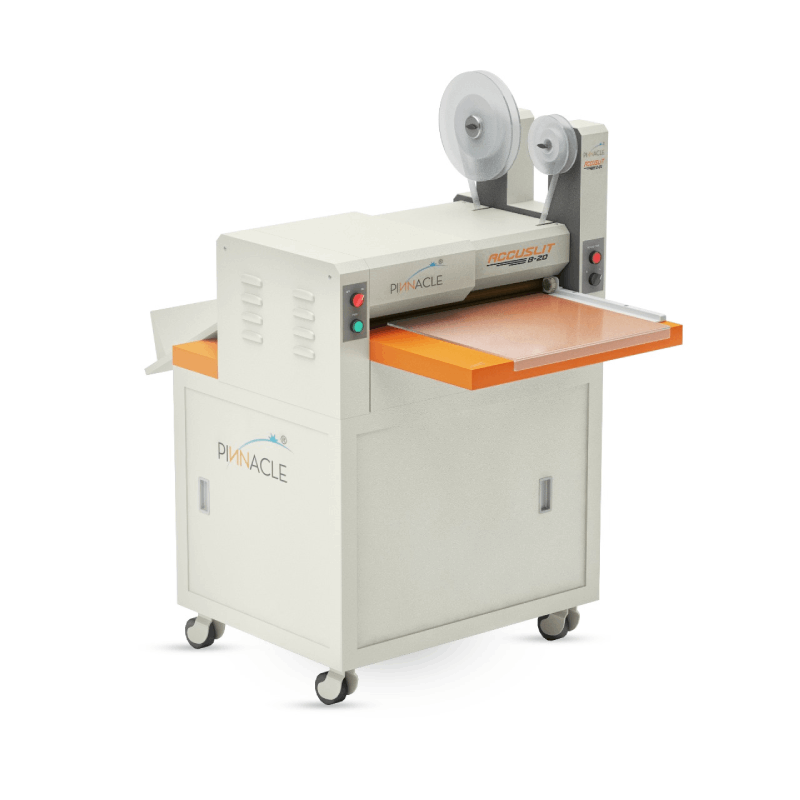

AccuSlit B20
*All-in-one photobook binding and lamination system for double sided prints
Description
AccuSlit B20
Normally in V-Shape Binding Technology, to strengthen the Media, we have to laminate the Media, after the Window Cutting Process. Some Photobooks that are made by using a special Media, which has an exclusive texture and the Media itself has a rich and enhanced surface, e.g., Texture paper, Metallic paper, Luster paper, etc. Laminating the Special Media reduces the charm and richness of the Special Media. We have designed a special machine, AccuSlit B-20, to solve this problem. AccuSlit B-20, Slits and Tapes the Spine Area, at the same time, by strengthening and adding flexibility to the Spine side, inspite of the Slitting process. AccuSlit B-20 is a multi-functional Slit and Strip Bonding machine for creating a complete Lay Flat Opening in a PhotoBook. Here, the Media is manually feeded. The Slitting distance from the Spine is adjustable. The Paper Guide, provided in AccuSlit B-20, helps in setting and maintaining the distance from the Spine, on one side. We have also provided a Digital Display Panel, to set the Slitting distance.
Ri-download-2-fill Icon-video
Key Features
  • Transparent adhesive tape provided for the image visibility, tenacious for proper holding of the prints and accurate binding.
  • Easy operations with knob and a digital display to set the spine width.
  • Auto indication before completion the tape roll.
  • Built in automatic system for cutting tapped sheets
Specification
Maximum paper Size
510 mm x 510 mm
Minimum Paper Size
200mm x 200 mm
Thickness of synthetic paper
0.125mm – 0.175mm
Air compressor
Pneumatic Connection Required
Thickness of paper
150 GSM - 300 GSM
Speed
700 Sheets / Hour
Power Supply
220V AC 50HZ
Maximum power consumption
500W
Machine dimension
3378(L) x 1092(W)x 1651(H) (mm)
Weight
700 Kg
